恩智浦FS85功能安全
| 對于ADAS和汽車電氣化而言，功能安全愈來愈重要。恩智浦針對域控制（ASIL B和D）的FS86安全SBC評估板重點展示其功率性能、安全集成以及域控制器應用的系統可擴展性，以滿足多個MCU要求。該評估板采用多個Nexperia部件。 |
主要特性與優勢
• 最大輸入電壓為60 V DC，適合12 V和24 V應用。
• VPRE同步降壓控制器，帶外部MOSFET。可配置輸出電壓、開關頻率，電流峰值高達10 A。
• 同步BUCK1轉換器，專用于MCU內核供電，具有SVS功能?？膳渲幂敵鲭妷海娏鞣逯蹈哌_(dá)3.6 A。
• 2個線性穩壓器用于MCU IO和ADC電源，外部物理層?？膳渲幂敵鲭妷海娏髂芰Ω哌_(dá)400 mA DC。
• 關閉模式（斷電）具有極低Iq（典型值為10 µA），適用于具有獨立安全監控單元的ASIL D。
關鍵應用
板上的產品 (3)
| Type number | Description | Status | Quick access | |
|---|---|---|---|---|
|
PSMN2R3-100SSE | N-channel 100 V, 2.3 mOhm MOSFET with enhanced SOA in LFPAK88 | Production | |
|
BC807-40LW | 45 V, 500 mA PNP general-purpose transistors | Production | |
|
BC807-40QB | 45 V, 500 mA PNP general-purpose transistors | Production |
相關板塊 (2)
| Board | Description | Type | Quick links | Shop link | |
|---|---|---|---|---|---|
|

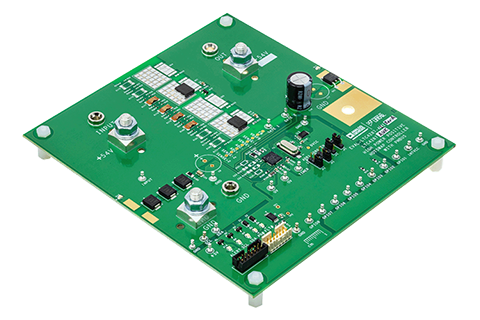

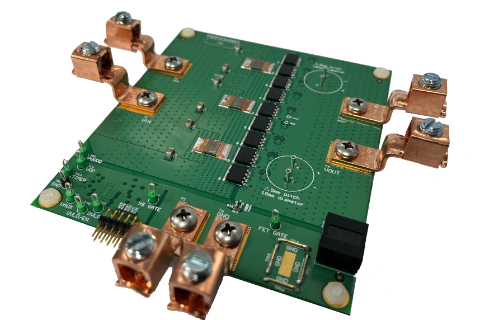

analog-devices-eval-ltc4287-54-v--72-a-hotswap | Analog Devices EVAL-LTC4287 54 V, 72 A Hotswap | Reference design | ||
|

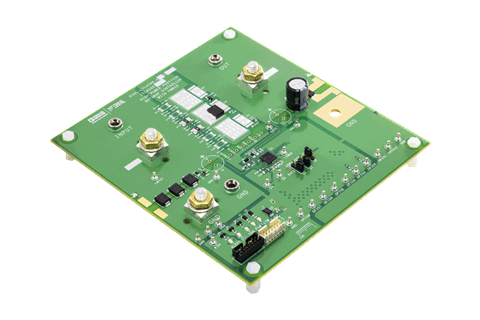

analog-devices-eval-ltc4286-a1z-hotswap- | Analog Devices EVAL-LTC4286 54 V, 36 A Hotswap | Reference design |
|
