NEX40400EVM-12：4.5 V到40 V，600 mA，PFM，2.1 MHz，同步降壓轉換器評估板

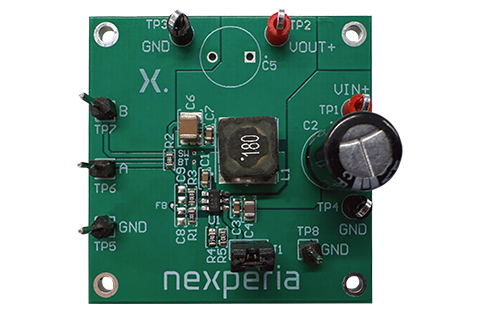

NEX40400EVM-12評估板是組裝在兩層PCB上的降壓DC-DC開關電壓轉換器的參考設計。它支持測試NEX40400降壓轉換器的功能和性能。
主要特性和優勢
• 4.5 V到40 V輸入電壓范圍
• 600 mA連續輸出電流
• 12 V輸出
• 輕負載下采用2.1 MHz脈沖頻率調制(PFM)
• 適用于高轉換率和低壓差應用的頻率折返
• 內部補償
• 帶間歇模式的短路保護
