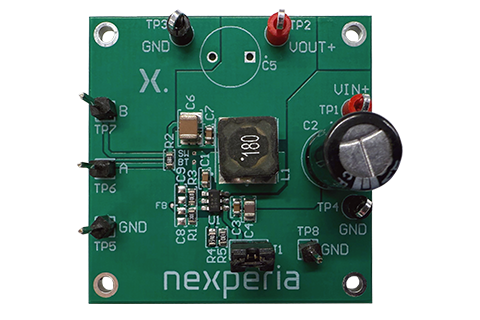

NEX40400EVM-12：4.5 V到40 V，600 mA，PFM，2.1 MHz，同步降壓轉換器評估板
NEX40400EVM-12評估板是組裝在兩層PCB上的降壓DC-DC開關電壓轉換器的參考設計。它支持測試NEX40400降壓轉換器的功能和性能。
主要特性和優勢
• 4.5 V到40 V輸入電壓范圍
• 600 mA連續輸出電流
• 12 V輸出
• 輕負載下采用2.1 MHz脈沖頻率調制(PFM)
• 適用于高轉換率和低壓差應用的頻率折返
• 內部補償
• 帶間歇模式的短路保護
板上的產品 (6)
| Type number | Description | Status | Quick access | |
|---|---|---|---|---|
|
NEX40400ADA | 4.5 V to 40 V, 600 mA, synchronous step-down converter | Production | |
|
|
NEX40400CDA | 4.5 V to 40 V, 600 mA, synchronous step-down converter | Production | |
|
|
NEX40400DDA | 4.5 V to 40 V, 600 mA, synchronous step-down converter | Production | |
|
|
NEX40400EDA | 4.5 V to 40 V, 600 mA, synchronous step-down converter | Production | |
|
|
NEX40400FDA | 4.5 V to 40 V, 600 mA, synchronous step-down converter | Production | |
|
|
NEX40400BDA | 4.5 V to 40 V, 600 mA, synchronous step-down converter | Production |
相關板塊 (1)
| Board | Description | Type | Quick links | Shop link | |
|---|---|---|---|---|---|
|
nex40400evm-05--4-5-v-to-40-v-600-ma-fpmw-1-05-mhz--synchronous-step-down-converter-evaluation-board | NEX40400EVM-05: 4.5 V to 40 V, 600 mA, FPWM, 1.05 MHz, synchronous step-down converter evaluation board | Evaluation board | 訂單 |
板上的產品 (6)
| Type number | Description | Status | Quick access | |
|---|---|---|---|---|
|
|
NEX40400ADA | 4.5 V to 40 V, 600 mA, synchronous step-down converter | Production | |
|
|
NEX40400CDA | 4.5 V to 40 V, 600 mA, synchronous step-down converter | Production | |
|
|
NEX40400DDA | 4.5 V to 40 V, 600 mA, synchronous step-down converter | Production | |
|
|
NEX40400EDA | 4.5 V to 40 V, 600 mA, synchronous step-down converter | Production | |
|
|
NEX40400FDA | 4.5 V to 40 V, 600 mA, synchronous step-down converter | Production | |
|
|
NEX40400BDA | 4.5 V to 40 V, 600 mA, synchronous step-down converter | Production |
相關板塊 (1)
| Board | Description | Type | Quick links | Shop link | |
|---|---|---|---|---|---|
|
|
nex40400evm-05--4-5-v-to-40-v-600-ma-fpmw-1-05-mhz--synchronous-step-down-converter-evaluation-board | NEX40400EVM-05: 4.5 V to 40 V, 600 mA, FPWM, 1.05 MHz, synchronous step-down converter evaluation board | Evaluation board | 訂單 |
文檔 (1)
| 文件名稱 | 標題 | 類型 | 日期 |
|---|---|---|---|
| UM90049 | NEX40400: 4.5 V to 40 V, 600 mA, synchronous step-down converter evaluation board | User manual | 2024-12-10 |
